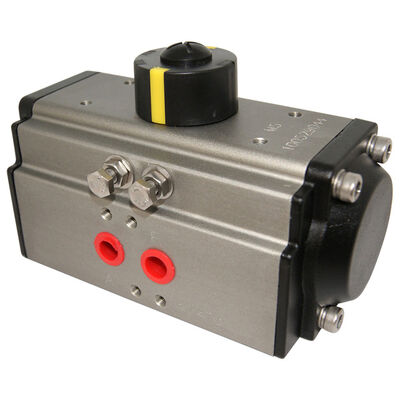

Rack Pinion Pneumatic Actuator with VDI/VDE3845 Standard Hard Anodized Treatment and Epoxy Coated for Industrial Usage
Thông tin chi tiết sản phẩm:
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 |
|---|
|
Thông tin chi tiết |
|||
| Mẫu số: | VS-083 | Kênh: | Thẳng qua loại |
|---|---|---|---|
| Kết cấu: | Piston | Kiểu: | Giá đỡ & bánh răng |
| Tiêu chuẩn: | ISO5211 | Ứng dụng: | Sử dụng công nghiệp, nước sử dụng công nghiệp |
| Gói vận chuyển: | Gói vỏ ván ép | Đặc điểm kỹ thuật: | VS/32DA -400DA. hoặc 52SR-400SR |
| Nhãn hiệu: | Veson hoặc cusomer "s | Nguồn gốc: | Trung Quốc |
| Mã HS: | 84123900 | năng lực sản xuất: | 50000pc / y |
| Làm nổi bật: | VDI/VDE3845 pneumatic rack actuator,hard anodized rack pinion actuator,epoxy coated industrial pneumatic actuator |
||
Mô tả sản phẩm
VS-075 (rack& pinion) have the following features.
> The output torque: Double: 86NM; Single: 15~35Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 86NM; Single: 15~35Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
