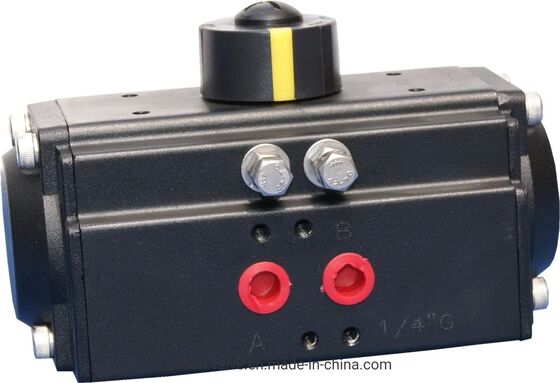

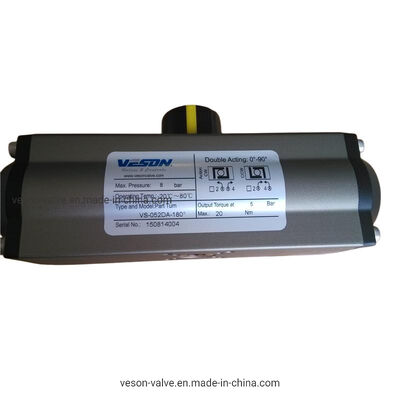

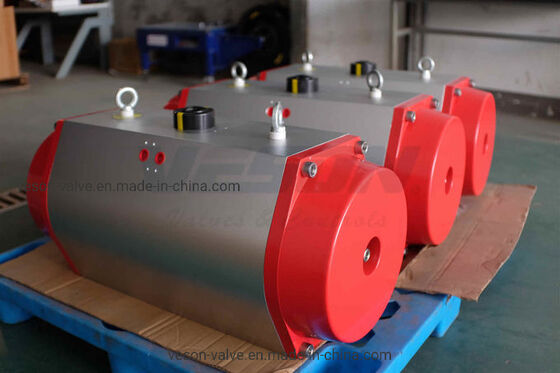

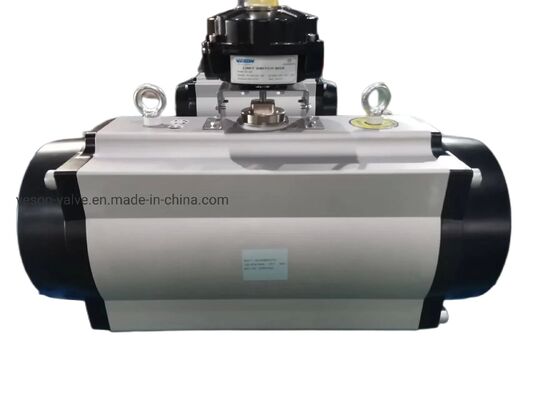

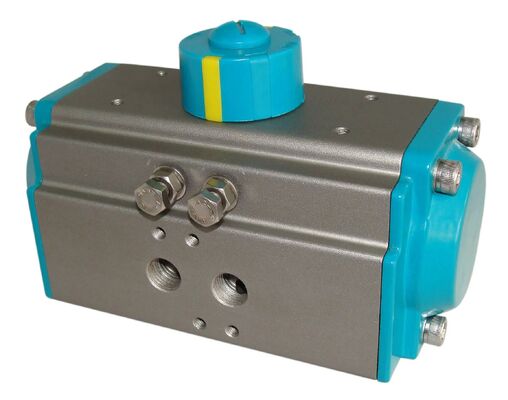

ISO5211/DIN3337 Compliant VDI/VDE3845 Compliant Hard Anodized Rack Pinion Pneumatic Actuator with Double Acting Spring Return
Thông tin chi tiết sản phẩm:
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 |
|---|
|
Thông tin chi tiết |
|||
| Mẫu số: | VS-063 | Kênh: | Thẳng qua loại |
|---|---|---|---|
| Kết cấu: | Piston | Kiểu: | Giá đỡ & bánh răng |
| Mã HS: | 84123900 | năng lực sản xuất: | 50000pc / y |
| Làm nổi bật: | ISO5211 compliant pneumatic actuator,hard anodized rack pinion actuator,double acting spring return actuator |
||
Mô tả sản phẩm
VS-063 (rack& pinion) have the following features.
> The output torque: Double: 43NM; Single: 7~16.4Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 43NM; Single: 7~16.4Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
