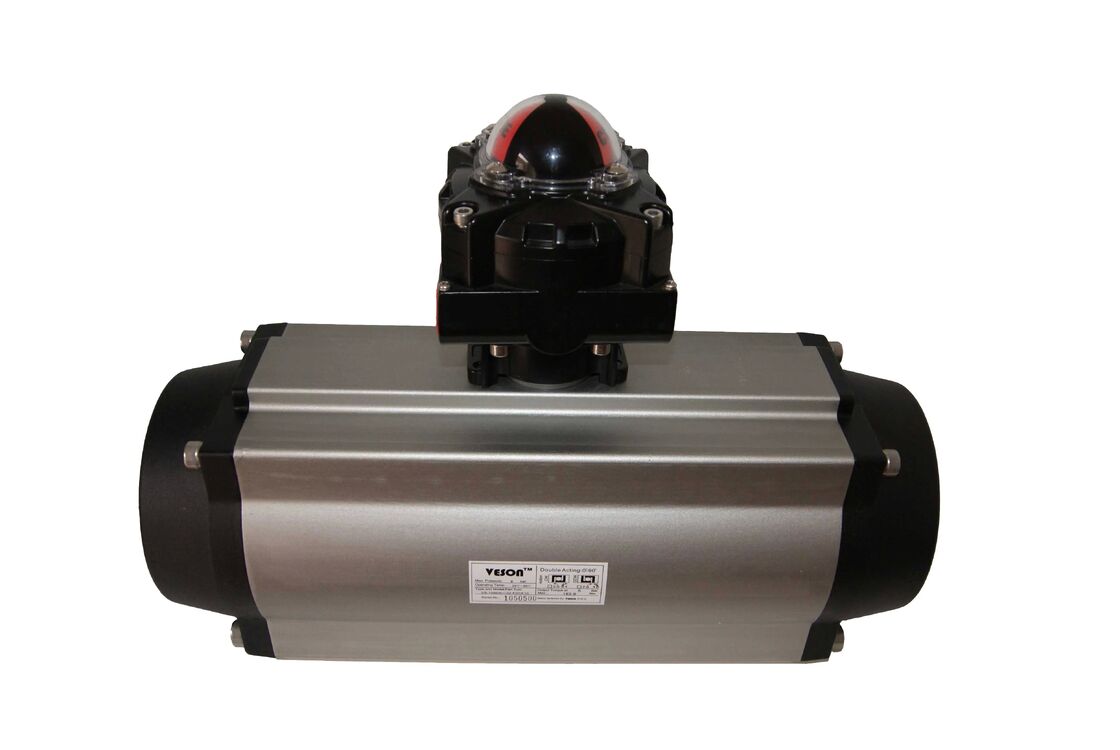

Aluminum Alloy Pneumatic Rack and Pinion Actuator with Hard Anodized Treatment and Epoxy Coated for Corrosion Resistance
Thông tin chi tiết sản phẩm:
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 |
|---|
|
Thông tin chi tiết |
|||
| Mẫu số: | VS-210 | Quyền lực: | Khí nén |
|---|---|---|---|
| Tiêu chuẩn: | Tiêu chuẩn | Hướng áp suất: | Xi lanh tác động kép |
| Loại xi lanh tác động kép: | Xi lanh thanh đôi | Loại xi lanh đặc biệt: | Số lượng xi lanh |
| Loại xi lanh kết hợp: | Xi lanh điều áp | Tiêu chuẩn thiết kế: | ISO5211 DIN3337 |
| Gói vận chuyển: | Gói vỏ ván ép | Đặc điểm kỹ thuật: | 1 inch-12 inch |
| Nhãn hiệu: | Veson hoặc cusomer "s | Nguồn gốc: | Trung Quốc |
| Mã HS: | 84123900 | năng lực sản xuất: | 50000pc / y |
| Làm nổi bật: | aluminum alloy pneumatic actuator,hard anodized rack and pinion actuator,corrosion resistant epoxy coated actuator |
||
Mô tả sản phẩm
VS-210 (rack& pinion) have the following features.
> The output torque: Double: 1596NM; Single: 275~660Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 1596NM; Single: 275~660Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
