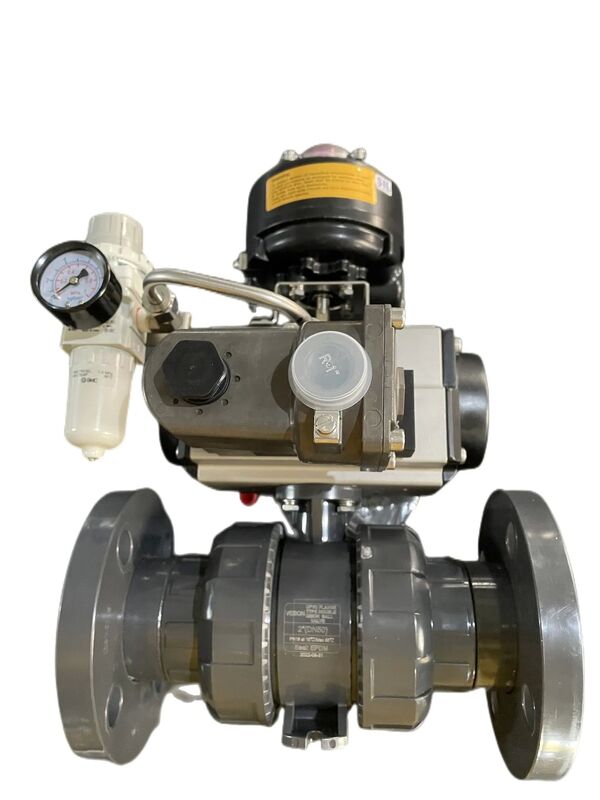

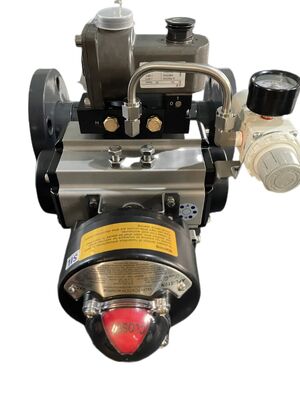

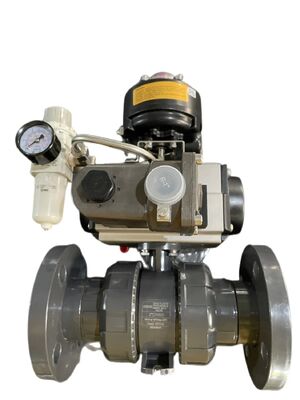

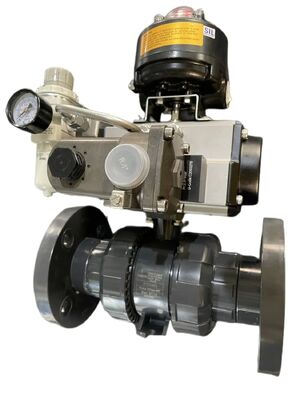

Pneumatic Ball Valve with Flange End High Temperature Industrial Usage Actuated Plastic Ball Valve

Veson valve ltd.makes actuation easy by matching each valve type and size with the appropriate actuator for proper operating torque and cycle time to assure optimum performance. All actuation valve packages include valve, actuator mounting, coupling, and precision actuator factory assembled with any purchased accessories, ready for installation.

The compact design of True Union 2000 Ball Valves provides maximum versatility with minimum space requirements. Fully serviceable valve cartridge also mates with Spears® Union 2000 Schedule 80 pipe unions. Both valves and unions utilize Buttress Thread union nuts for superior strength. All ball valves feature self adjusting Floating Seat design for extended service, and double O-ring stem seals for assurance of fluid containment in case of inadvertent valve damage. Available in chemical and corrosion resistant PVC or CPVC with socket, flanged or Reinforced (SR) threaded.

Actuated package includes polypropylene valve mounting bracket for accurate valve/actuator alignment and support in any position. Premium pneumatic actuator is an Air-to-Air (Double Acting; optional Spring Return) featuring twin piston rack and pinion operation with adjustable stops, and permanent lubrication. Manual override is standard. Housing is hard anodized aluminum with epoxy coated aluminum end caps.

Industrial grade True Union design, 1/4-turn shutoff for a wide range of applications. Full-featured actuator can be custom configured with add-on accessories. 80 psi Operating Pressure, other options are available.

See Pneumatic Actuator Accessories for Ball Valves & Butterfly Valves for Add-on Actuator Accessories
